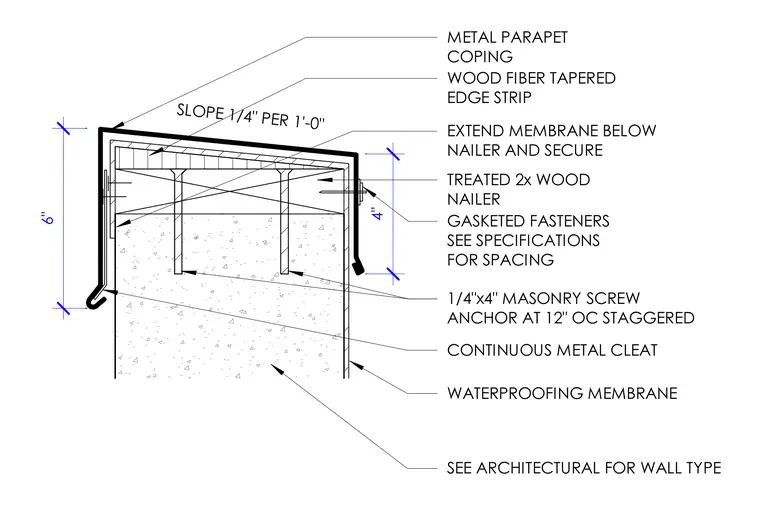

A treated two-by wood nailer is anchored to the top of the masonry wall with one-quarter-inch by four-inch masonry screw anchors spaced at twelve inches on center staggered. A wood fiber tapered edge strip provides a one-quarter-inch per one-foot slope across the top of the nailer. A waterproofing membrane extends below the nailer and is secured by gasketed fasteners with spacing per specifications. A metal parapet coping snap-locks onto a continuous metal cleat fastened to the face of the assembly.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
