Wood Slat Ceiling Open Edge Detail

Materials

Elements

About this detail

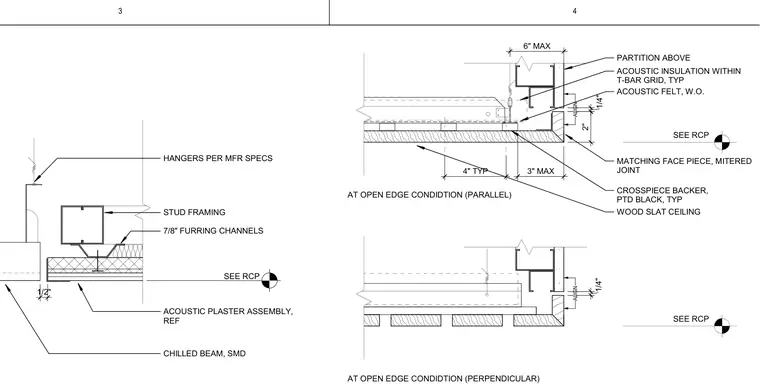

Termination of a wood slat ceiling at an open edge condition for both parallel and perpendicular orientations. The assembly consists of a wood slat ceiling with backer pieces painted black, backed by acoustic felt and acoustic insulation within a T-bar grid. The edge features a matching face piece with mitered joints and a one-quarter inch alignment gap. Partitions above are framed with studs and supported by hangers per manufacturer specifications.
