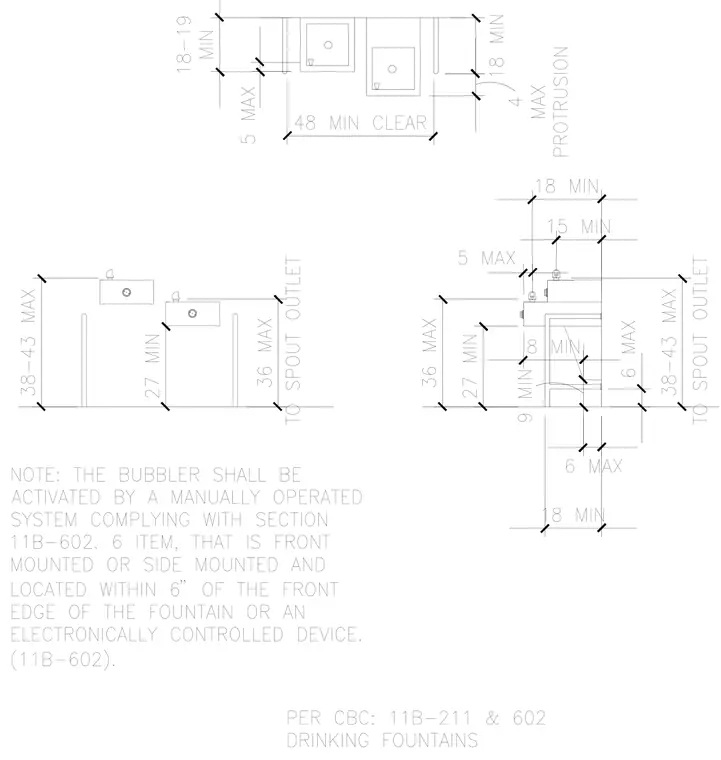

The plan and elevations show accessibility clearances and mounting heights for drinking fountains per California Building Code sections 11B-211 and 11B-602. The spout outlet is positioned at a maximum height of 36 inches above the finished floor, with an overall rim height of 38 to 43 inches maximum. Knee clearance requires a minimum height of 27 inches, a depth of 8 inches minimum at the toe, and 6 inches maximum toe clearance. Clear floor space of 48 inches minimum is provided in front of the units with side and front clearances ranging from 18 to 19 inches minimum.
