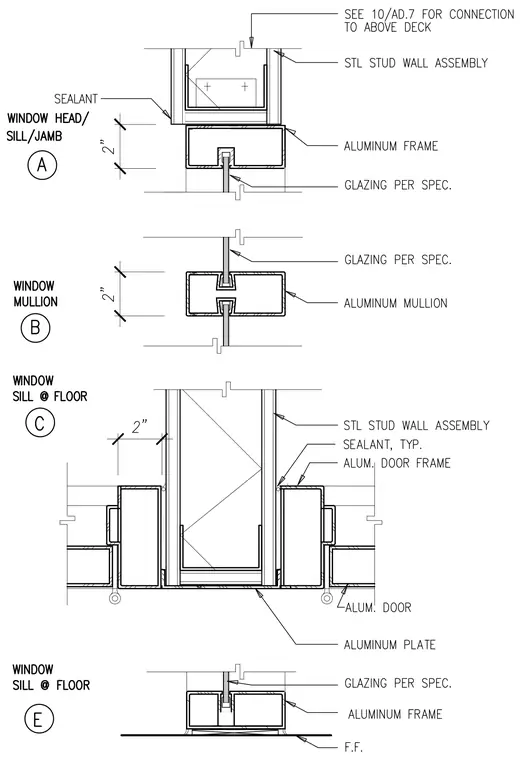

The window head detail incorporates a steel stud wall assembly meeting an aluminum window frame with a two-inch dimension and perimeter sealant. A window mullion detail shows an intermediate aluminum mullion retaining glazing per specification. The window sill at floor detail connects a steel stud wall with an aluminum door frame, aluminum doors, and an aluminum plate above finished floor level. Additional window sill and head configurations illustrate typical glazing and framing intersections with adjacent construction.
