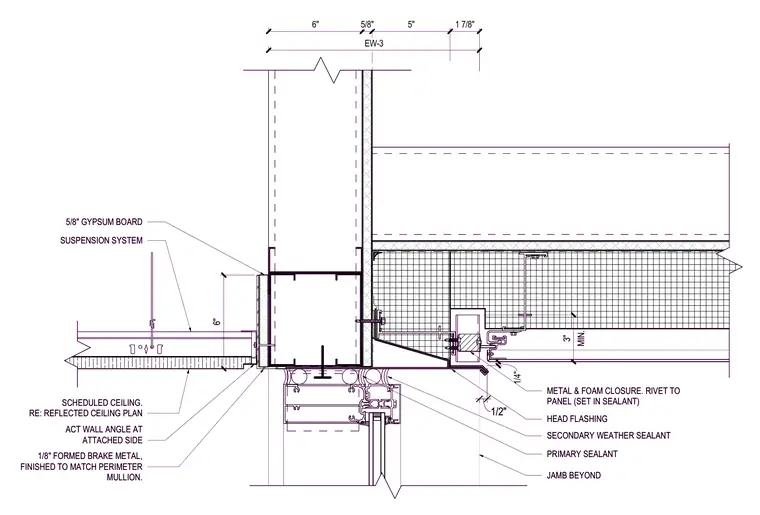

Exterior wall head flashing and metal foam closure assembly at a junction with a perimeter window mullion and a suspended acoustical ceiling. A three-inch metal and foam closure is riveted to the panel and set in sealant. Primary and secondary weather sealants provide a continuous thermal and moisture barrier above the head flashing, which is fabricated from one-eighth-inch formed brake metal finished to match the perimeter mullion. Interior finishes include a five-eighth-inch gypsum board suspension system secured with an acoustical ceiling tile wall angle at the attached side.
6" 5/8" 5" 1 7/8" 1/4" HEAD FLASHING SECONDARY WEATHER SEALANT PRIMARY SEALANT JAMB BEYOND EW-3 1/2" SCHEDULED CEILING. RE: REFLECTED CEILING PLAN 1/8" FORMED BRAKE METAL, FINISHED TO MATCH PERIMETER MULLION. 6" MIN. 3" METAL & FOAM CLOSURE. RIVET TO PANEL (SET IN SEALANT) 5/8" GYPSUM BOARD SUSPENSION SYSTEM ACT WALL ANGLE AT ATTACHED SIDE 6" 5/8" 5" 1 7/8" 1/4" HEAD FLASHING SECONDARY WEATHER SEALANT PRIMARY SEALANT JAMB BEYOND EW-3 1/2" SCHEDULED CEILING. RE: REFLECTED CEILING PLAN 1/8" FORMED BRAKE METAL, FINISHED TO MATCH PERIMETER MULLION. 6" MIN. 3" METAL & FOAM CLOSURE. RIVET TO PANEL (SET IN SEALANT) 5/8" GYPSUM BOARD SUSPENSION SYSTEM ACT WALL ANGLE AT ATTACHED SIDE
