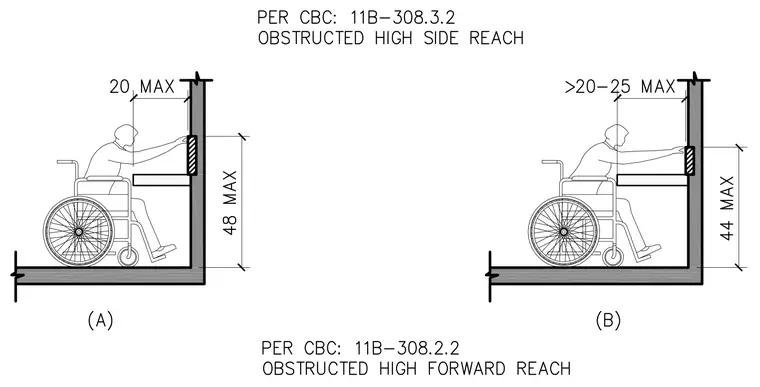

Accessibility reach ranges for wheelchair users operating controls or accessories with an obstructed high side or forward reach. Diagram A shows an obstructed high side reach with a maximum 20-inch reach depth and a maximum 48-inch height to the top of the operable part. Diagram B shows an obstructed high side or forward reach greater than 20 inches up to 25 inches maximum, with a maximum height of 44 inches to the top of the operable part.
