Electrical outlets are installed with sealant around the perimeter and staggered twenty-four inches minimum where practical to maintain acoustic performance. When staggering is not practical, outlets are placed in separate stud bays or equipped with putty pads. Acoustic notes govern additional information and requirements for the wall assembly.

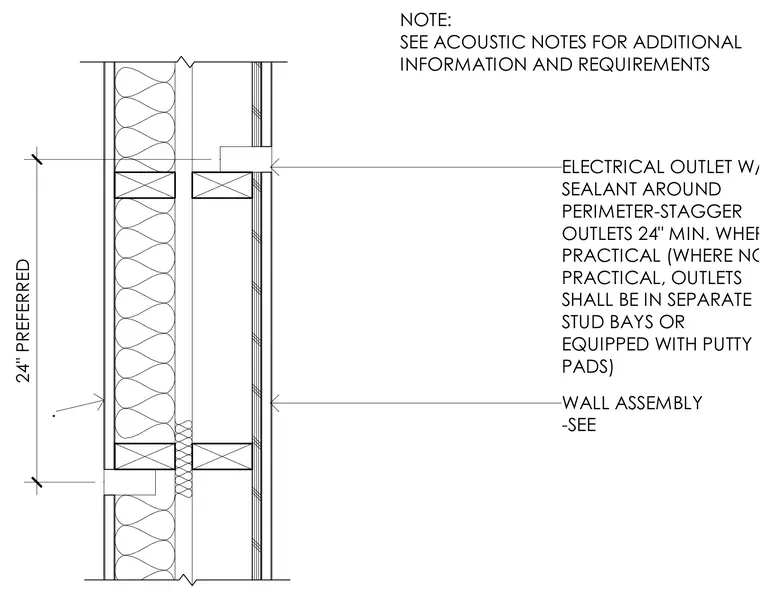

WALL ASSEMBLY -SEE . NOTE: SEE ACOUSTIC NOTES FOR ADDITIONAL INFORMATION AND REQUIREMENTS 24" PREFERRED ELECTRICAL OUTLET W/ SEALANT AROUND PERIMETER-STAGGER OUTLETS 24" MIN. WHERE PRACTICAL (WHERE NOT PRACTICAL, OUTLETS SHALL BE IN SEPARATE STUD BAYS OR EQUIPPED WITH PUTTY PADS)
