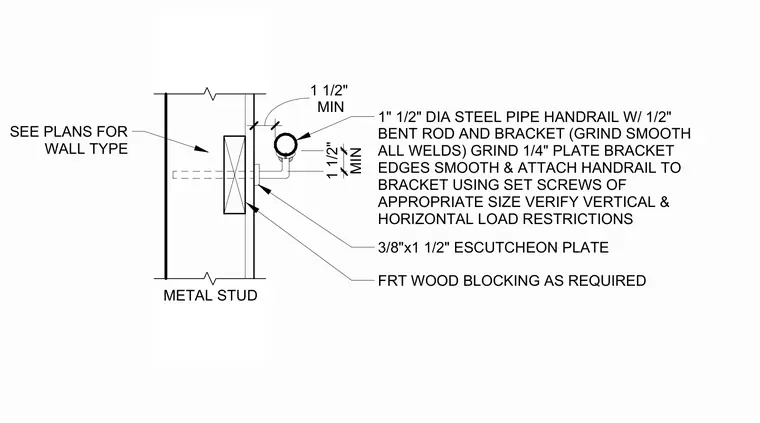

A one-and-a-half-inch diameter steel pipe handrail is supported by a one-half-inch bent rod and bracket assembly. All welds are ground smooth, and the one-quarter-inch plate bracket edges are also ground smooth before the handrail is secured to the bracket using appropriately sized set screws. An escutcheon plate measuring three-eighths by one-and-a-half inches sits against the wall surface over fire-retardant treated wood blocking. The backing is anchored within a metal stud wall assembly, with wall types sized per the architectural plans.
1" 1/2" DIA STEEL PIPE HANDRAIL W/ 1/2" BENT ROD AND BRACKET (GRIND SMOOTH ALL WELDS) GRIND 1/4" PLATE BRACKET EDGES SMOOTH & ATTACH HANDRAIL TO BRACKET USING SET SCREWS OF APPROPRIATE SIZE VERIFY VERTICAL & HORIZONTAL LOAD RESTRICTIONS 3/8"x1 1/2" ESCUTCHEON PLATE FRT WOOD BLOCKING AS REQUIRED MIN 1 1/2" METAL STUD SEE PLANS FOR WALL TYPE MIN 1 1/2"
