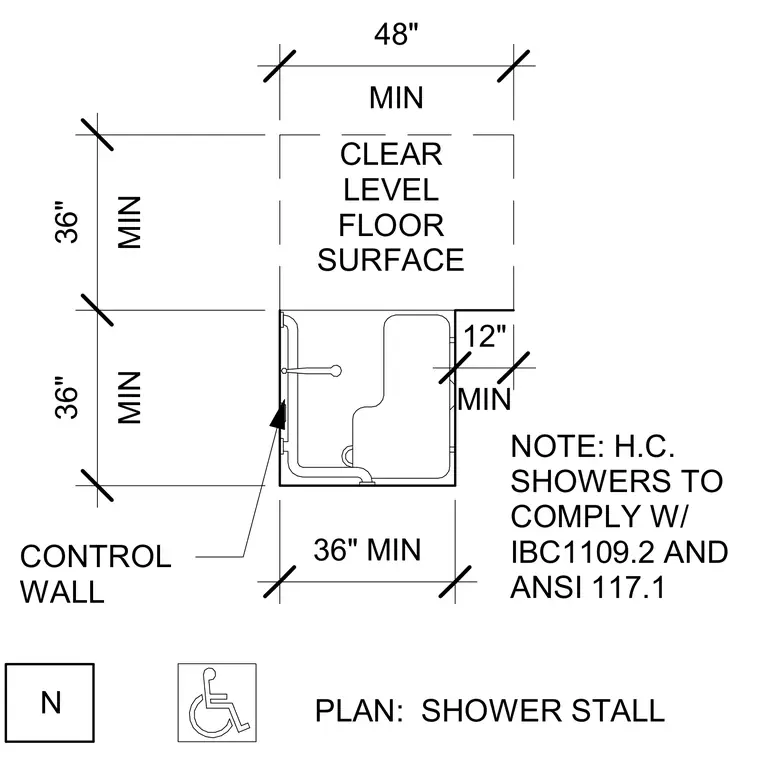

Accessible shower stalls comply with IBC Section 1109.2 and ANSI A117.1 requirements. The layout maintains a minimum forty-eight inch by thirty-six inch clear level floor surface adjacent to the shower compartment. The control wall features required grab bar placements and a minimum thirty-six inch width with a twelve inch minimum clearance along the adjacent side.
PLAN: SHOWER STALL N CLEAR LEVEL FLOOR SURFACE NOTE: H.C. SHOWERS TO COMPLY W/ IBC1109.2 AND ANSI 117.1 MIN 12" MIN 36" MIN 36" MIN 48" CONTROL WALL 36" MIN
