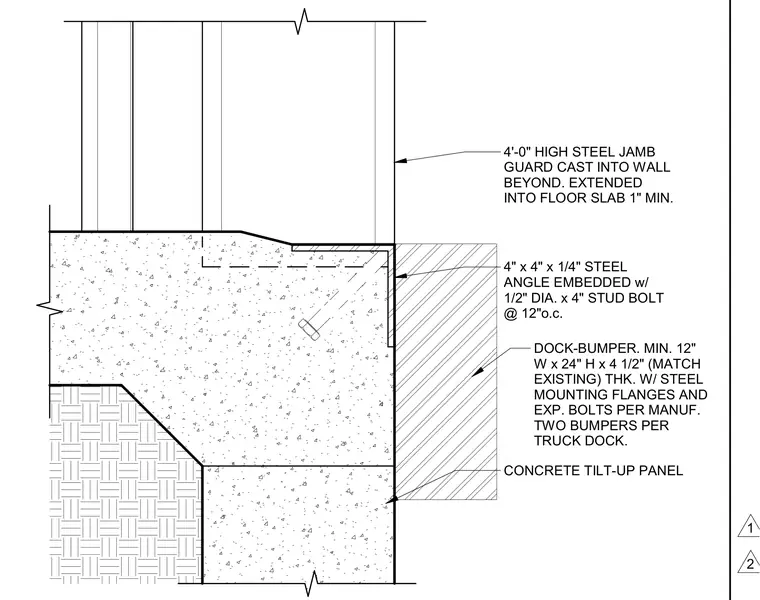

A four-foot-high steel jamb guard is cast into the concrete tilt-up wall beyond and extends one inch minimum into the floor slab. A four-by-four-by-one-quarter-inch steel angle is embedded in the concrete with half-inch-diameter by four-inch stud bolts at twelve inches on center. A dock bumper measuring minimum twelve inches wide by twenty-four inches high by four and a half inches thick with steel mounting flanges is secured with expansion bolts per the manufacturer. Two bumpers are provided per truck dock.
CONCRETE TILT-UP PANEL 4'-0" HIGH STEEL JAMB GUARD CAST INTO WALL BEYOND. EXTENDED INTO FLOOR SLAB 1" MIN. 4" x 4" x 1/4" STEEL ANGLE EMBEDDED w/ 1/2" DIA. x 4" STUD BOLT @ 12"o.c. DOCK-BUMPER. MIN. 12" W x 24" H x 4 1/2" (MATCH EXISTING) THK. W/ STEEL MOUNTING FLANGES AND EXP. BOLTS PER MANUF. TWO BUMPERS PER TRUCK DOCK. 1 2
