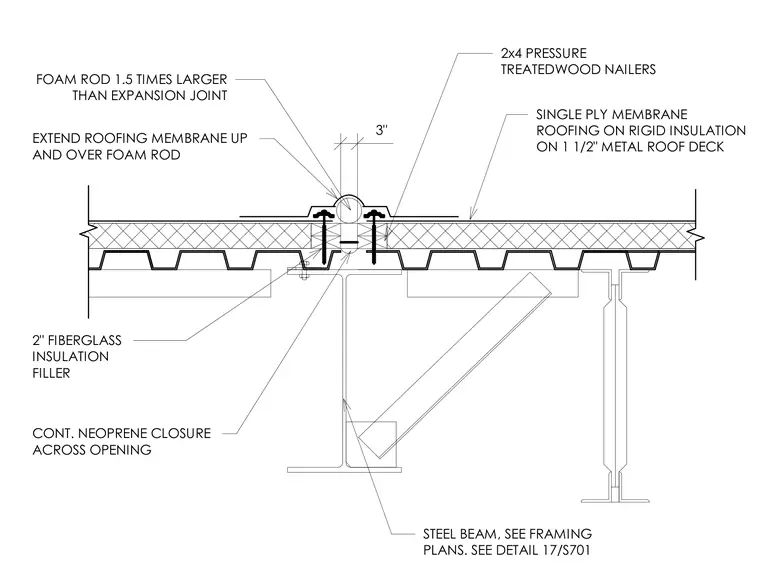

A roof expansion joint assembly spans between two supporting steel beams carrying a one-and-a-half-inch metal roof deck topped with rigid insulation and single-ply membrane roofing. The three-inch joint opening contains a continuous neoprene closure across the gap and is filled with two inches of fiberglass insulation below. Two-by-four pressure-treated wood nailers flank the opening and anchor the membrane assembly. A three-inch foam rod sized one-and-a-half times larger than the expansion joint sits inside the gap, with the roofing membrane extending up and over the foam rod to maintain weather tightness.
3" FOAM ROD 1.5 TIMES LARGER THAN EXPANSION JOINT SINGLE PLY MEMBRANE ROOFING ON RIGID INSULATION ON 1 1/2" METAL ROOF DECK EXTEND ROOFING MEMBRANE UP AND OVER FOAM ROD 2x4 PRESSURE TREATEDWOOD NAILERS 2" FIBERGLASS INSULATION FILLER CONT. NEOPRENE CLOSURE ACROSS OPENING STEEL BEAM, SEE FRAMING PLANS. SEE DETAIL 17/S701
