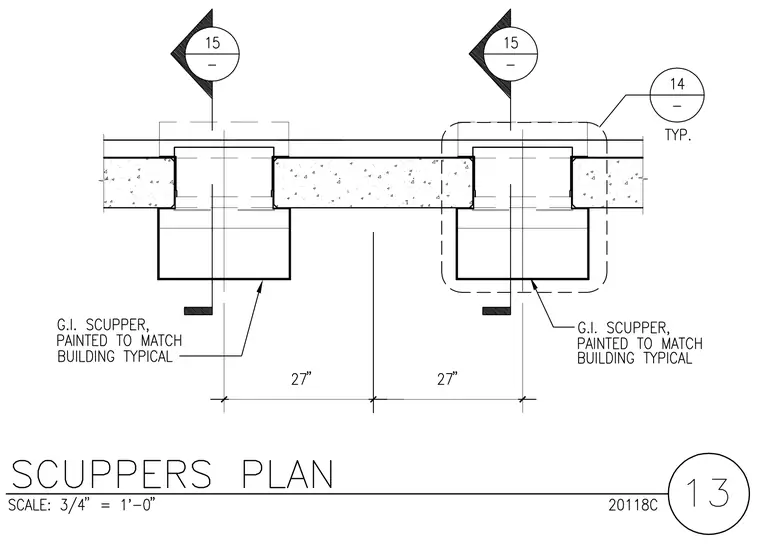

Galvanized iron scuppers are installed within openings in a concrete wall, spaced twenty-seven inches apart on center. Each scupper is painted to match the building standard. Detail reference bubbles and dimensional callouts locate the scupper penetrations relative to the surrounding wall assembly.
