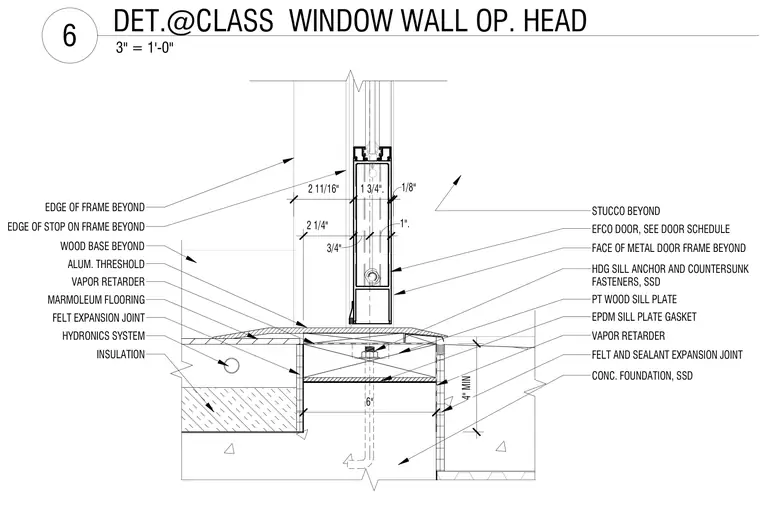

An aluminum storefront door frame sits atop a concrete foundation and pressure-treated wood sill plate, secured with hot-dip galvanized sill anchors and countersunk fasteners. An EPDM sill plate gasket, felt, and sealant provide weather sealing at the threshold alongside an aluminum threshold and Marmoleum flooring over a hydronic radiant heating system, insulation, and a vapor retarder. Stucco finish appears beyond the assembly.
STUCCO BEYOND EFCO DOOR, SEE DOOR SCHEDULE HDG SILL ANCHOR AND COUNTERSUNK FASTENERS, SSD PT WOOD SILL PLATE EPDM SILL PLATE GASKET FELT AND SEALANT EXPANSION JOINT CONC. FOUNDATION, SSD MARMOLEUM FLOORING HYDRONICS SYSTEM INSULATION VAPOR RETARDER VAPOR RETARDER FELT EXPANSION JOINT ALUM. THRESHOLD WOOD BASE BEYOND EDGE OF STOP ON FRAME BEYOND FACE OF METAL DOOR FRAME BEYOND EDGE OF FRAME BEYOND 2 11/16" 1 3/4". 1/8" 2 1/4" 3/4" 1". 6" 4" MIN 3" = 1'-0" 6 DET.@CLASS WINDOW WALL OP. HEAD
