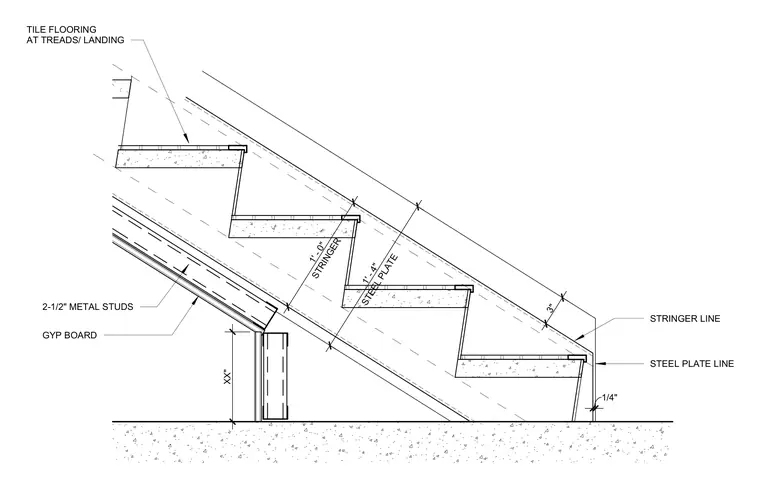

This stair assembly features steel stringers and plates supporting treads finished with tile flooring at the treads and landing. The underside of the stair framing is enclosed with gypsum board over two-and-a-half-inch metal studs. Dimensions define the one-foot zero-inch stringer depth, one-foot four-inch steel plate thickness, and three-inch assembly clearance.
GYP BOARD 2-1/2" METAL STUDS TILE FLOORING AT TREADS/ LANDING STRINGER LINE STEEL PLATE LINE 1/4" 3" STEEL PLATE 1' - 4" STRINGER 1' - 0" XX"
