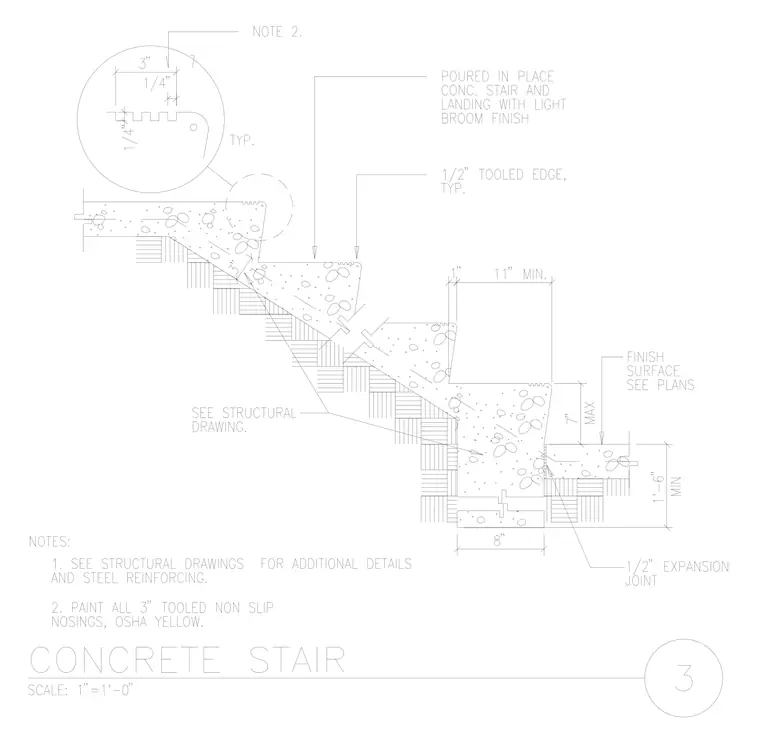

A poured-in-place concrete stair and landing features a light broom finish with typical one-half-inch tooled edges and three-inch tooled non-slip nosings painted OSHA yellow. The treads have an eleven-inch minimum depth and seven-inch maximum risers, supported by concrete bearing on compacted fill. A one-half-inch expansion joint is provided at the base landing, with structural reinforcing and additional details specified per structural drawings.
