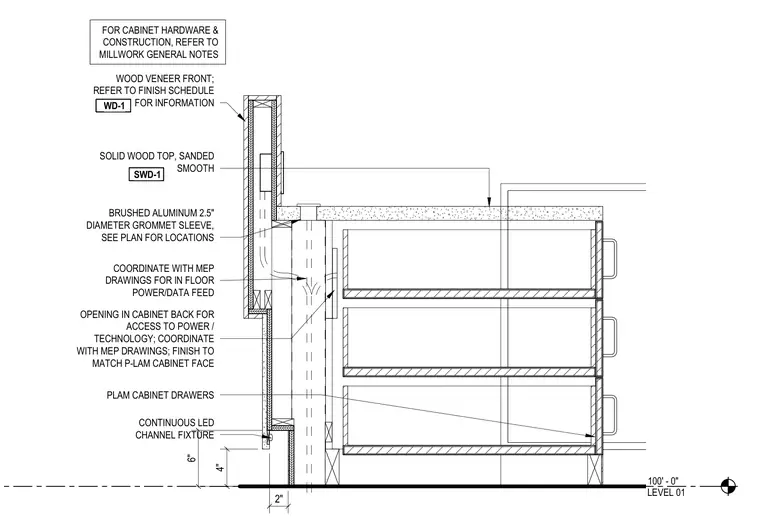

This reception desk assembly features a solid wood top sanded smooth with a designated wood veneer front and plastic laminate drawers below. A two-and-a-half-inch diameter brushed aluminum grommet sleeve accommodates wire routing, while openings in the cabinet back provide access to power and technology feeds coordinated with mechanical, electrical, and plumbing drawings. A continuous light-emitting diode channel fixture provides illumination beneath the casework overhang. Millwork construction adheres to general architectural woodworking standards and finish schedules.
100' - 0" LEVEL 01 SOLID WOOD TOP, SANDED SMOOTH OPENING IN CABINET BACK FOR ACCESS TO POWER / TECHNOLOGY; COORDINATE WITH MEP DRAWINGS; FINISH TO MATCH P-LAM CABINET FACE COORDINATE WITH MEP DRAWINGS FOR IN FLOOR POWER/DATA FEED PLAM CABINET DRAWERS CONTINUOUS LED CHANNEL FIXTURE FOR CABINET HARDWARE & CONSTRUCTION, REFER TO MILLWORK GENERAL NOTES 4" 6" 2" BRUSHED ALUMINUM 2.5" DIAMETER GROMMET SLEEVE, SEE PLAN FOR LOCATIONS WD-1 WOOD VENEER FRONT; REFER TO FINISH SCHEDULE FOR INFORMATION SWD-1
