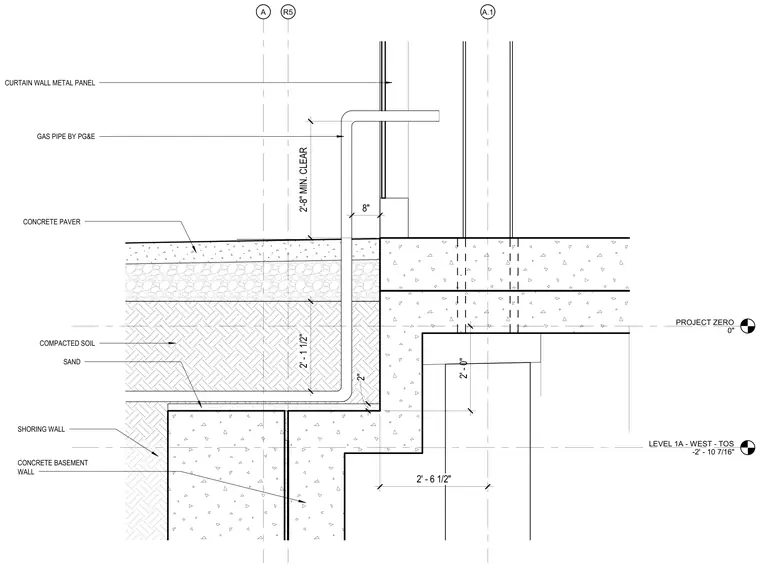

This architectural detail shows a stepped concrete slab foundation intersection adjacent to a shoring wall and concrete basement wall. The assembly includes a compacted soil bed over sand, finished with a concrete paver walking surface. A gas pipe, designated by the utility provider, penetrates the stepped slab with a two-foot-eight-inch minimum clear vertical clearance. An exterior curtain wall with metal panels aligns above the slab step.
PROJECT ZERO 0" R5 A.1 A LEVEL 1A - WEST - TOS -2' - 10 7/16" 2' - 0" 2' - 1 1/2" 8" 2'-8" MIN. CLEAR 2" 2' - 6 1/2" SAND CONCRETE PAVER GAS PIPE BY PG&E CONCRETE BASEMENT WALL COMPACTED SOIL CURTAIN WALL METAL PANEL SHORING WALL
