Architectural · A-WX4W5

Tactile Exit Stair Down Sign

Elements

About this detail

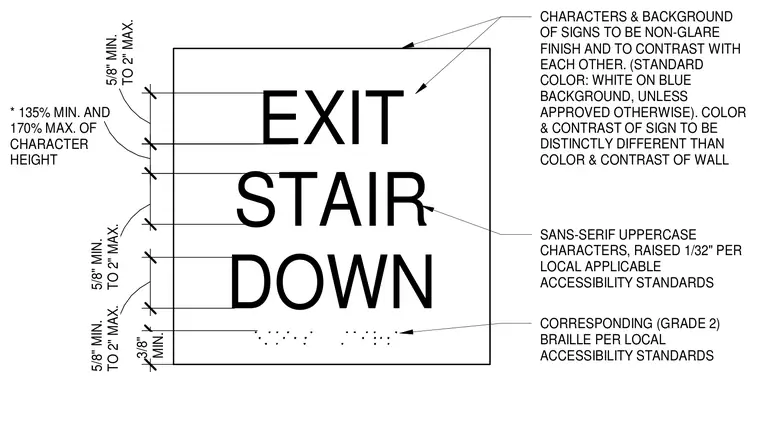

An exit stair down signage assembly features sans-serif uppercase characters raised one-thirty-second of an inch above the background, accompanied by corresponding Grade 2 Braille. The sign plate has a non-glare finish designed to contrast distinctly with the wall color, typically specified as white text on a blue background. Vertical spacing between lines of text ranges from five-eighths of an inch minimum to two inches maximum, with a three-eighths inch minimum clearance at the bottom. Character height corresponds to local accessibility standards ranging from one hundred thirty-five to one hundred seventy percent.
