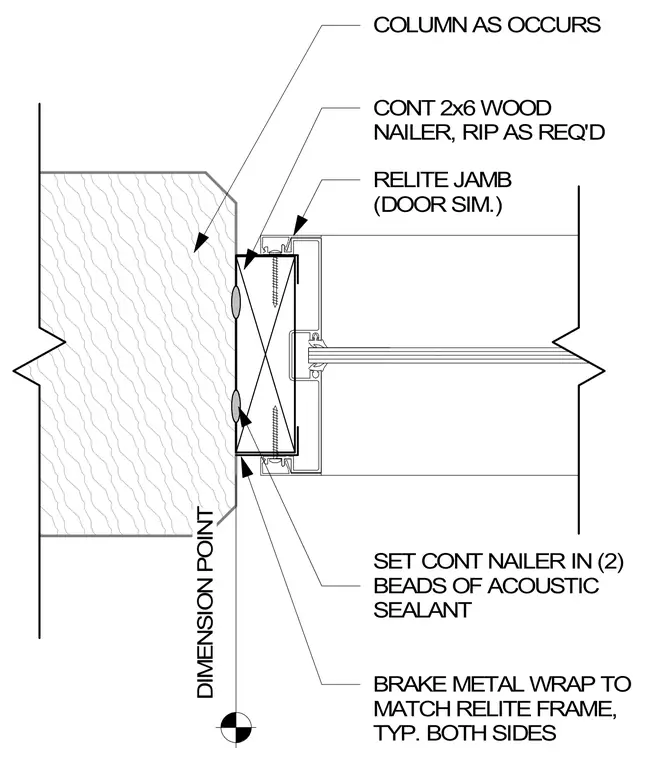

A continuous 2x6 wood nailer is ripped as required and set in two beads of acoustic sealant against the structural column. A brake metal wrap matches the relite frame on both sides. The relite jamb connects to the wood nailer assembly with fasteners.
RELITE JAMB (DOOR SIM.) COLUMN AS OCCURS CONT 2x6 WOOD NAILER, RIP AS REQ'D DIMENSION POINT SET CONT NAILER IN (2) BEADS OF ACOUSTIC SEALANT BRAKE METAL WRAP TO MATCH RELITE FRAME, TYP. BOTH SIDES
