A-WWMJ9 — Basement Landing at Wall

Architectural · A-WWMJ9

Basement Landing at Wall

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5.03
Discipline: Architectural

Materials

Concrete Metal (misc.)Steel

Elements

Connections / Plates Decks Floors / Slabs Stairs Walls

Connections

Deck Attachment Embed Plate

Text on the drawing

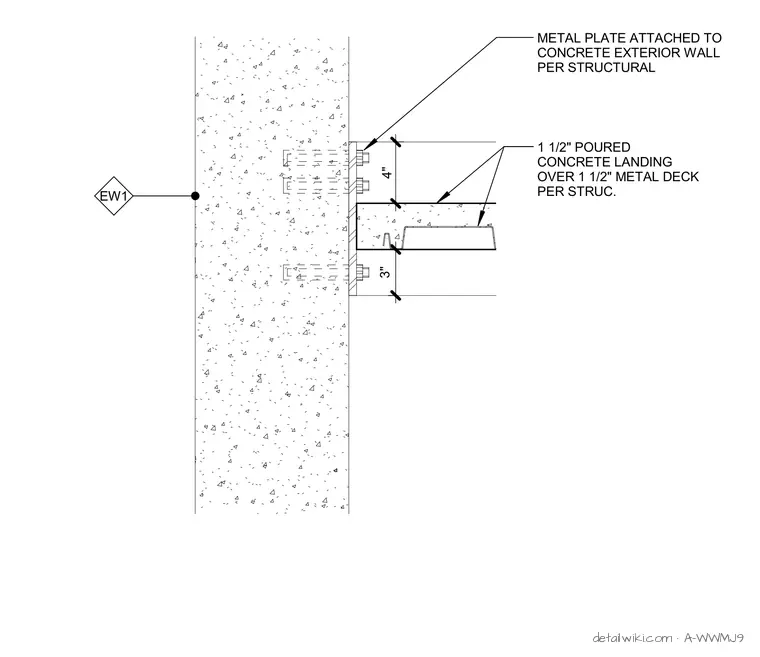

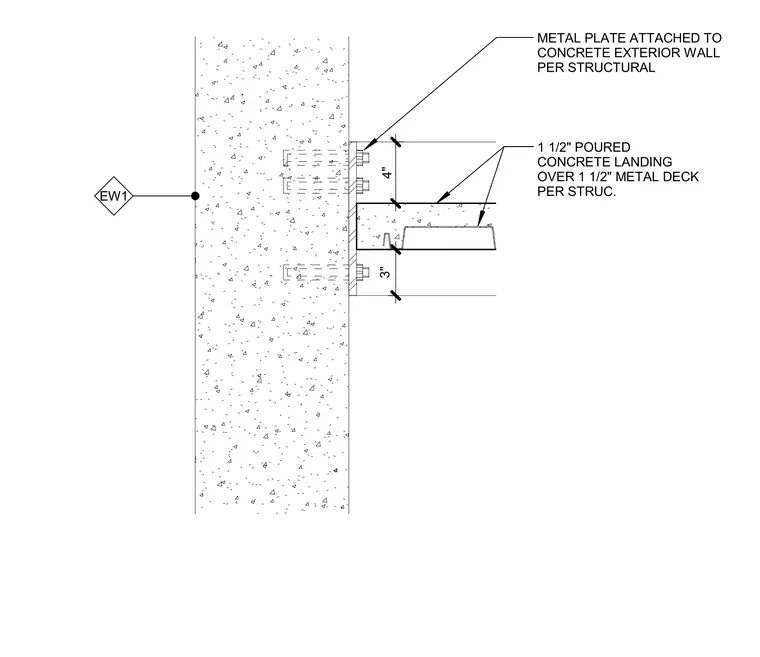

EW1 METAL PLATE ATTACHED TO CONCRETE EXTERIOR WALL PER STRUCTURAL 1 1/2" POURED CONCRETE LANDING OVER 1 1/2" METAL DECK PER STRUC. 4" 3"
