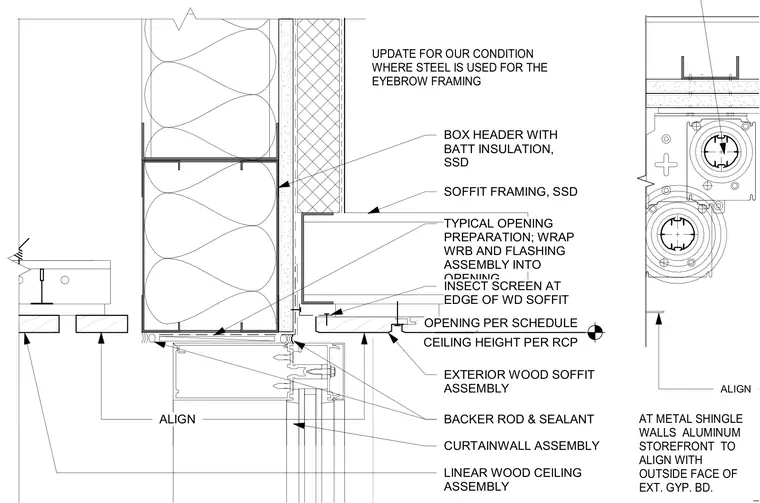

An aluminum storefront assembly aligns with the outside face of exterior gypsum board at the head condition. A box header contains batt insulation and cold-formed metal framing, backed by an exterior wood soffit assembly. The rough opening preparation wraps the weather-resistive barrier and flashing assembly into the opening, sealed with backer rod and sealant at the frame joint. An insect screen is detailed at the edge of the wood soffit, adjacent to a linear wood ceiling assembly on the interior side. Steel eyebrow framing supports the overhang assembly above the storefront head.
ALIGN AT METAL SHINGLE WALLS ALUMINUM STOREFRONT TO ALIGN WITH OUTSIDE FACE OF EXT. GYP. BD. BOX HEADER WITH BATT INSULATION, SSD SOFFIT FRAMING, SSD EXTERIOR WOOD SOFFIT ASSEMBLY CURTAINWALL ASSEMBLY TYPICAL OPENING PREPARATION; WRAP WRB AND FLASHING ASSEMBLY INTO OPENING BACKER ROD & SEALANT LINEAR WOOD CEILING ASSEMBLY OPENING PER SCHEDULE CEILING HEIGHT PER RCP ALIGN INSECT SCREEN AT EDGE OF WD SOFFIT UPDATE FOR OUR CONDITION WHERE STEEL IS USED FOR THE EYEBROW FRAMING
