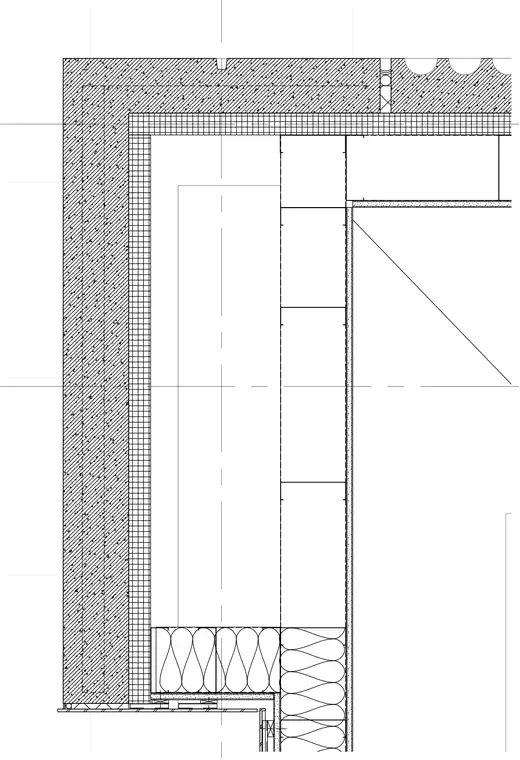

An exterior corner junction of insulated precast concrete sandwich wall panels. The precast panels feature exterior concrete wythes, rigid insulation cores, and interior concrete wythes separated by vertical joints. The interior side includes metal stud framing with batt insulation and gypsum board finishes. Control joints or reveals are detailed at the exterior corner and panel joints.
