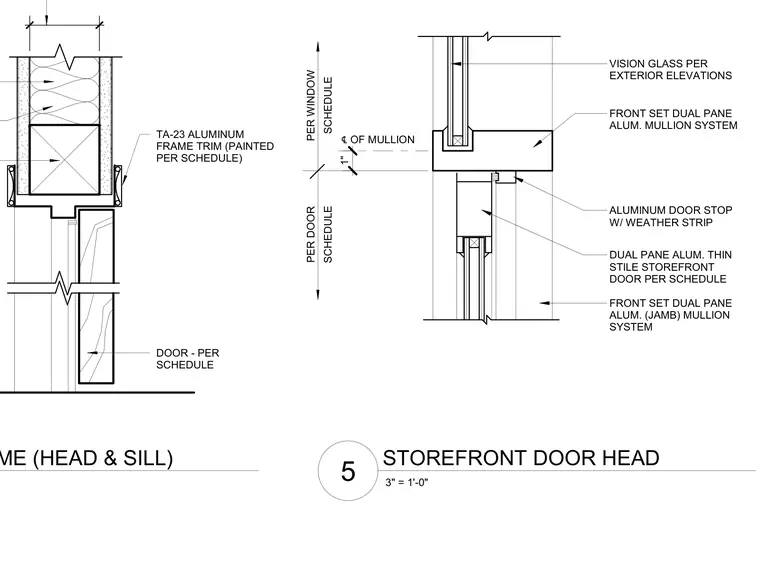

A front-set dual-pane aluminum mullion system integrates with vision glass at the storefront door head and jamb transition. A dual-pane aluminum thin-stile storefront door operates within the frame, fitted with an aluminum door stop and weather stripping. TA-23 aluminum frame trim is applied around the perimeter and painted per the finish schedule. The adjacent wall assembly includes wood framing with insulation and finished surfaces.
DOOR - PER SCHEDULE TA-23 ALUMINUM FRAME TRIM (PAINTED PER SCHEDULE) ALUMINUM DOOR STOP W/ WEATHER STRIP DUAL PANE ALUM. THIN STILE STOREFRONT DOOR PER SCHEDULE FRONT SET DUAL PANE ALUM. (JAMB) MULLION SYSTEM FRONT SET DUAL PANE ALUM. MULLION SYSTEM VISION GLASS PER EXTERIOR ELEVATIONS PER DOOR SCHEDULE PER WINDOW SCHEDULE 1" ℄ OF MULLION DOOR FRAME (HEAD & SILL) 3" = 1'-0" 5 STOREFRONT DOOR HEAD
