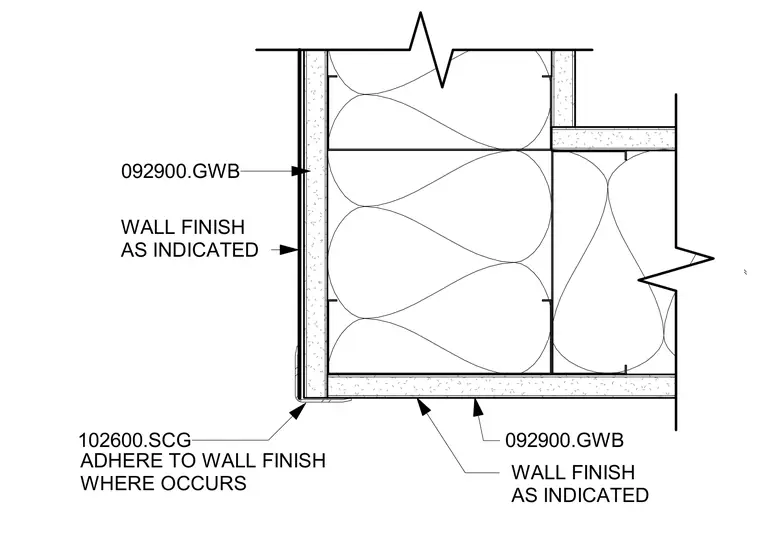

A surface-mounted corner guard adheres directly to the gypsum wallboard finish at the outside corner of the partition. The gypsum board assemblies are installed over metal stud framing with specified wall finishes applied as indicated.
092900.GWB 092900.GWB WALL FINISH AS INDICATED WALL FINISH AS INDICATED ADHERE TO WALL FINISH WHERE OCCURS 102600.SCG
