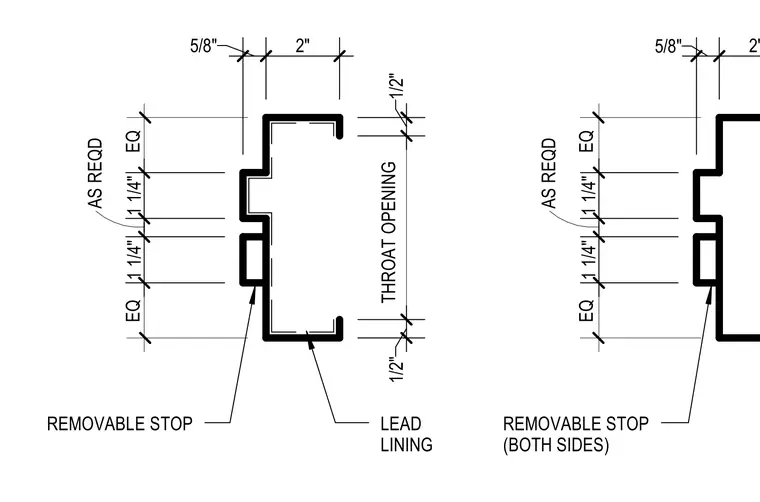

Metal mullion profile featuring lead lining as required and removable stops on both sides. The profile dimensions include a 2-inch overall depth, 5/8-inch flange width, 1/2-inch throat opening clearances, and equal spacing configurations with 1-1/4-inch channel segments. Removable stops secure the assembly while accommodating the internal shielding requirements.
THROAT OPENING 5/8" 2" 1 1/4" 1 1/4" 1/2" 1/2" 5/8" 2" 1 1/4" 1 1/4" EQ EQ EQ EQ REMOVABLE STOP REMOVABLE STOP (BOTH SIDES) LEAD LINING AS REQD AS REQD
