Architectural · A-WW27R

Curtain Wall Head and Floor Slab Anchorage Detail

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

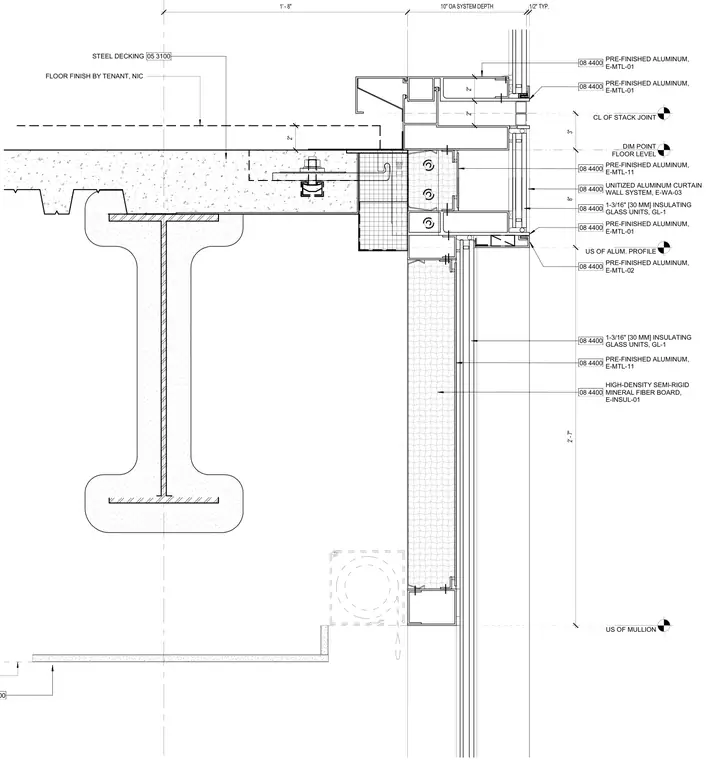

A unitized aluminum curtain wall system head condition intersects a structural steel floor assembly. A steel beam supports metal decking and a concrete slab, with an embed anchor connecting to the curtain wall head framing. Pre-finished aluminum extrusions form the framing members, which enclose high-density semi-rigid mineral fiber board insulation and 1-3/16-inch insulating glass units. The stack joint centerline and floor level dimensions establish the vertical alignment between the slab edge and the mullion profile.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
