Operating parts must be positioned below the maximum allowable height when an open obstruction is deeper than 20 inches for an obstructed forward approach.

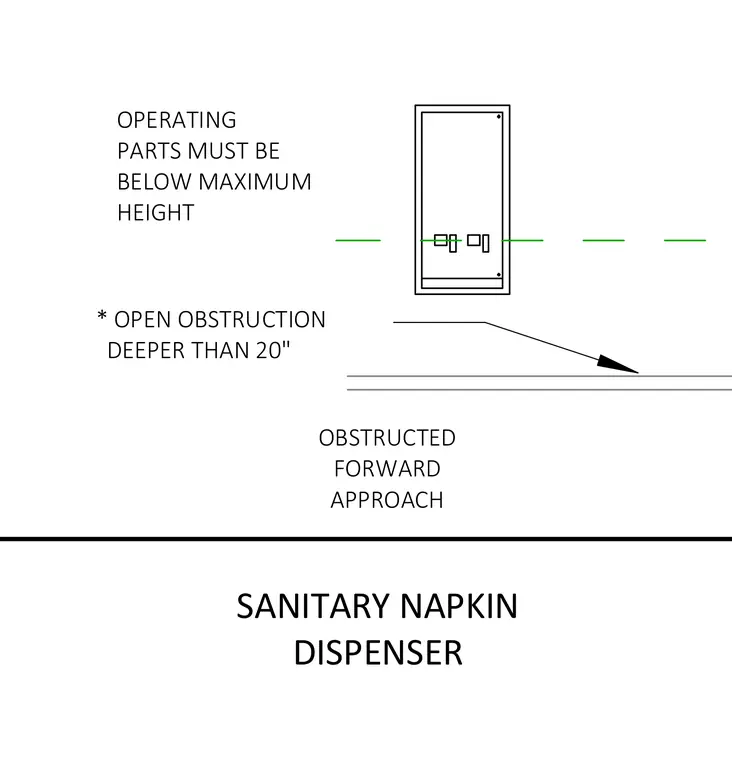

SANITARY NAPKIN DISPENSER OBSTRUCTED FORWARD APPROACH OPERATING PARTS MUST BE BELOW MAXIMUM HEIGHT * OPEN OBSTRUCTION DEEPER THAN 20"
