Architectural · A-WVP64

Rooftop Equipment Support Block and Piping Detail

Materials

Timber / Wood

Elements

Roofs Waterproofing / Flashing Drainage

Connections

Welded Connection

About this detail

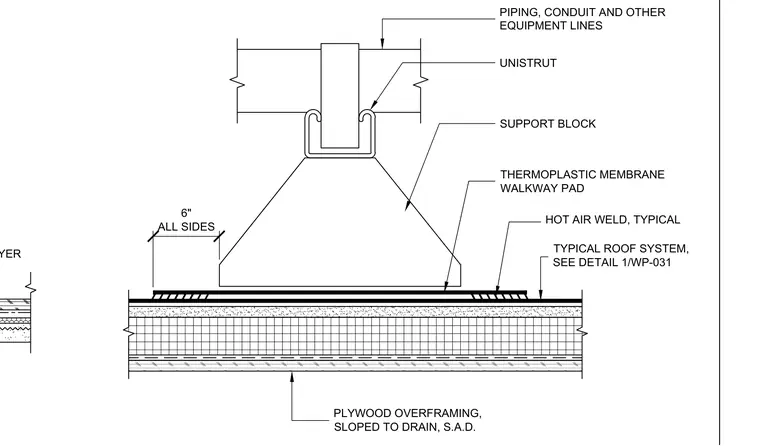

Piping, conduit, and other equipment lines are supported by Unistrut channels seated in a rooftop support block. The support block bears on a thermoplastic membrane walkway pad, which is hot air welded on all sides with a six-inch clearance dimension. This entire assembly rests on a typical roof system over sloped plywood overframing.
