A Fry Reglet DRMF-50-50 aluminum reveal profile is screw-fastened to cold-formed metal framing studs at the interior corner. Gypsum wallboard panels are installed adjacent to the reveal. The finished surface is taped and coated with joint compound and painted.

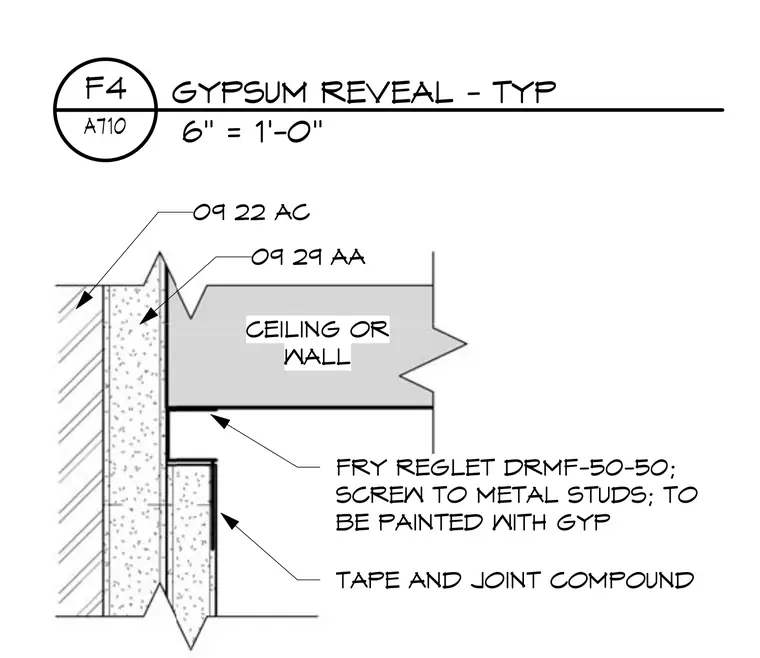

FRY REGLET DRMF-50-50; SCREW TO METAL STUDS; TO BE PAINTED WITH GYP TAPE AND JOINT COMPOUND 09 29 AA 09 22 AC CEILING OR WALL 6" = 1'-0" A710 F4 GYPSUM REVEAL - TYP
