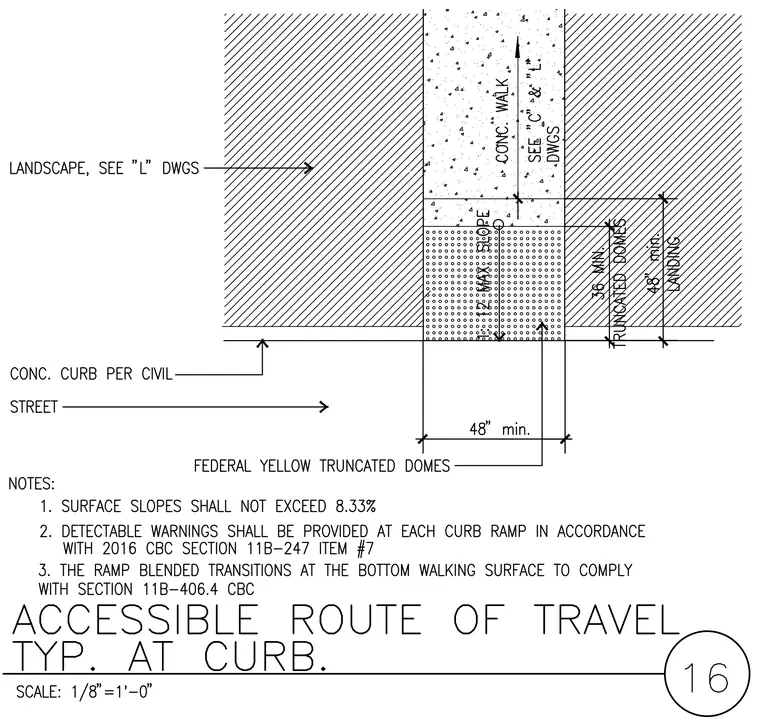

An accessible curb ramp features Federal yellow truncated domes across a forty-eight-inch minimum landing width with a maximum slope of twelve to one. The concrete walk transition connects to adjacent civil and landscape elements, maintaining a forty-eight-inch minimum dimension. Surface slopes are limited to a maximum of eight point three three percent per accessibility standards. Detectable warnings are provided at each curb ramp in accordance with building code requirements.
