Heavy Steel Column Base Plate Plan Detail

Materials

Steel

Elements

Connections / Plates

Connections

Base Plate / Anchorage

About this detail

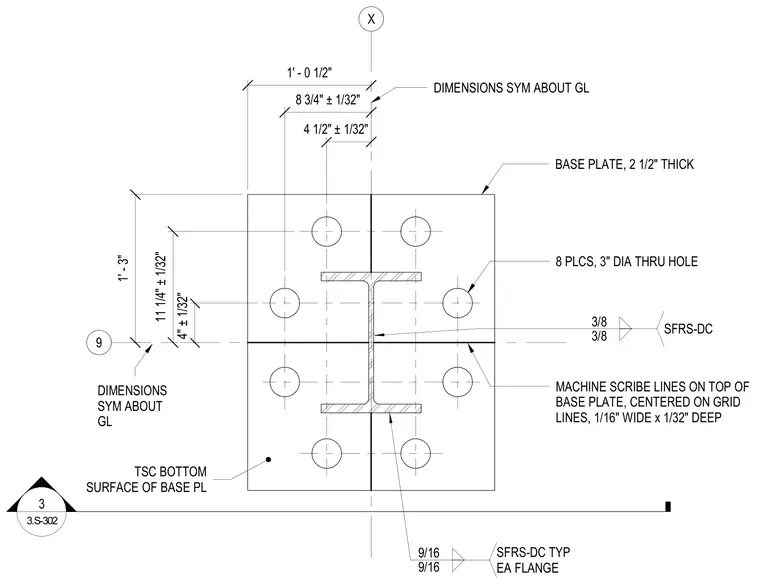

A heavy steel column base plate measuring two and one-half inches thick features symmetrical dimensions centered on grid lines X and nine. Eight three-inch diameter through-holes are located at precise offsets of four inches, eight and three-quarter inches, and one foot zero and one-half inches from centerline. Fillet welds of nine-sixteenths inch size connect each flange, while three-eighths inch welds secure the web, marked with SFRS-DC designations. Machine scribe lines measuring one-sixteenth inch wide by one-thirty-second inch deep are centered on the grid lines across the top surface of the base plate, with the bottom surface receiving a TSC coating.
