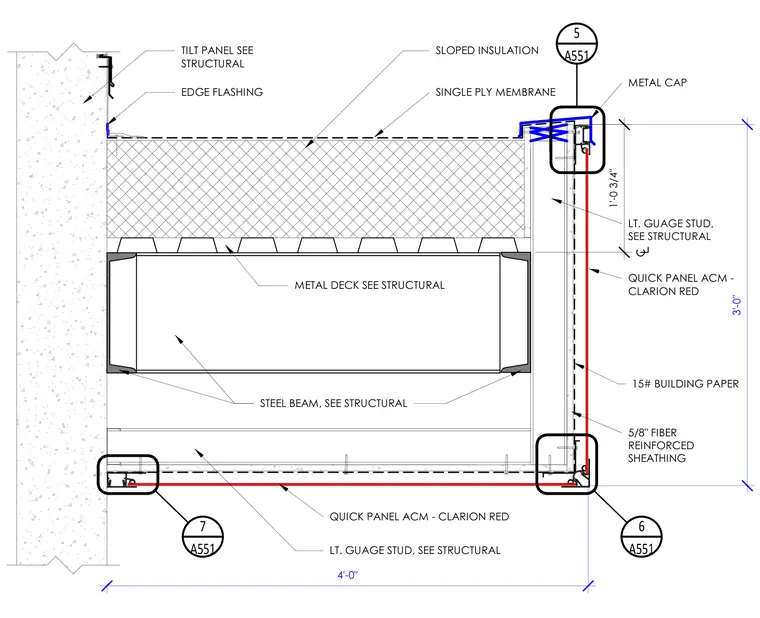

This canopy section details a roof structure supported by a steel beam and metal deck with sloped insulation and a single-ply membrane. The fascia and underside are finished with Quick Panel aluminum composite material in Clarion Red over five-eighths inch fiber reinforced sheathing, building paper, and light gauge steel studs. A metal cap finishes the outside edge of the canopy above the fascia panel. Edge flashing seals the joint where the top of the canopy meets the tilt-up concrete wall.
EDGE FLASHING QUICK PANEL ACM - CLARION RED METAL CAP SINGLE PLY MEMBRANE QUICK PANEL ACM - CLARION RED 5/8" FIBER REINFORCED SHEATHING TILT PANEL SEE STRUCTURAL LT. GUAGE STUD, SEE STRUCTURAL SLOPED INSULATION 3'-0" 4'-0" LT. GUAGE STUD, SEE STRUCTURAL STEEL BEAM, SEE STRUCTURAL METAL DECK SEE STRUCTURAL 15# BUILDING PAPER 1'-0 3/4" A551 5 A551 6 A551 7
