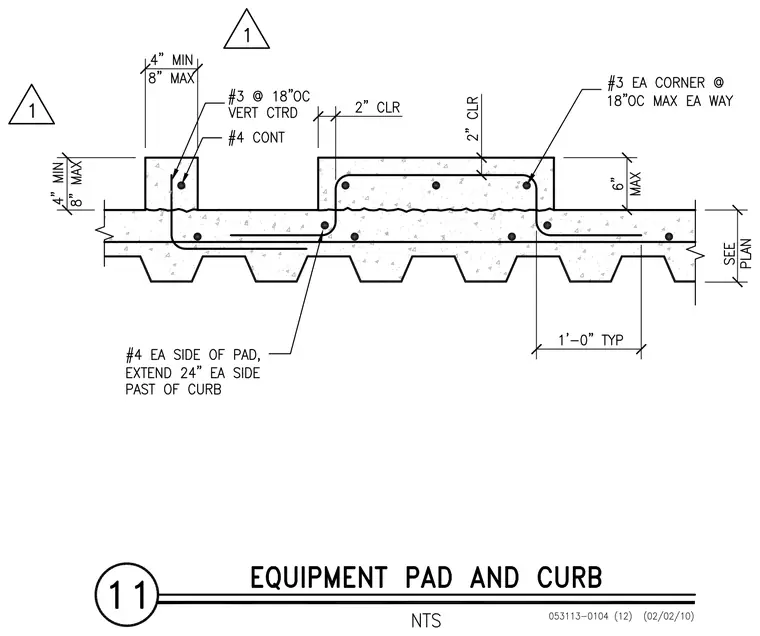

A concrete equipment curb and pad are supported on a metal deck slab with specified reinforcing steel and clearances. The curb features a continuous number 4 rebar and number 3 vertical rebar spaced at 18 inches on center centered within the section, with dimensions indicating a 4 inch minimum to 8 inch maximum height and width. The equipment pad includes number 3 rebar at each corner spaced at 18 inches on center maximum each way, with a 6 inch maximum height and a 2 inch concrete clearance. Additional number 4 rebar is placed at each side of the pad and extends 24 inches on each side past the curb.
