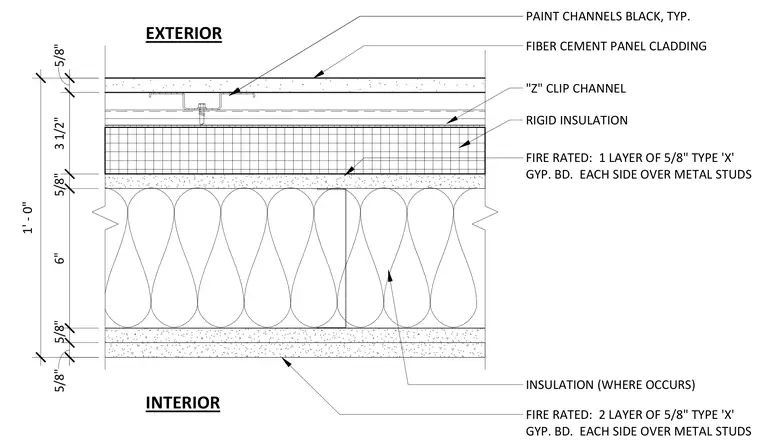

This two-hour exterior wall partition consists of metal studs framed with one layer of five-eighths-inch Type X gypsum board on the exterior side and two layers of five-eighths-inch Type X gypsum board on the interior side. Batt insulation is installed within the six-inch stud cavity where required. Rigid insulation is applied continuously over the exterior gypsum sheathing. The exterior finish utilizes fiber cement panel cladding mounted on Z-clip channels, with channels painted black typically.
INSULATION (WHERE OCCURS) FIRE RATED: 1 LAYER OF 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUDS 5/8" 3 1/2" 5/8" 6" 5/8" 5/8" FIRE RATED: 2 LAYER OF 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUDS 1' - 0" FIBER CEMENT PANEL CLADDING EXTERIOR INTERIOR "Z" CLIP CHANNEL RIGID INSULATION PAINT CHANNELS BLACK, TYP.
