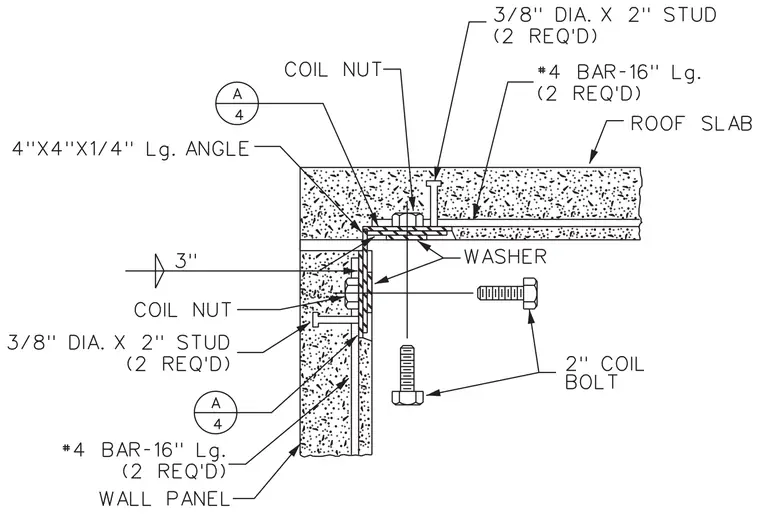

A four-inch by four-inch by one-quarter-inch long structural angle connects the concrete roof slab to the adjacent wall panel. The angle is anchored into the roof slab with two three-eighths-inch diameter by two-inch studs and two sixteen-inch-long number four reinforcing bars, secured by a coil nut and washer. A similar embedded assembly anchors the vertical leg of the angle into the wall panel utilizing two three-eighths-inch diameter by two-inch studs, two sixteen-inch-long number four reinforcing bars, and a coil nut. A two-inch coil bolt fastens through the vertical leg of the angle into the wall panel insert. A three-inch dimension marks the vertical spacing.
