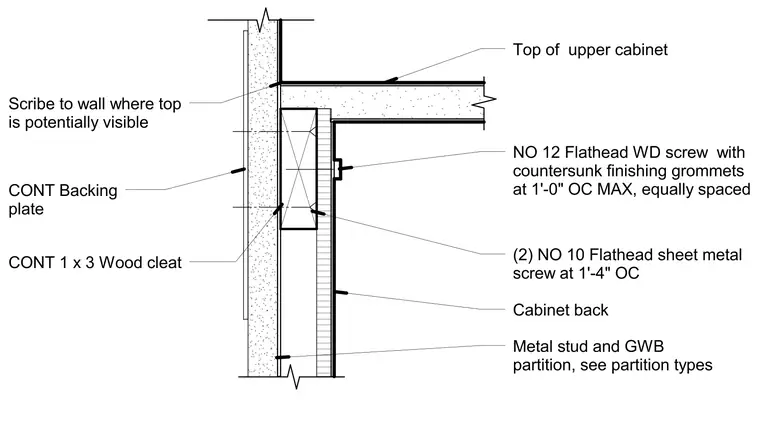

This upper cabinet attachment detail fastens to a metal stud and gypsum wallboard partition backed by a continuous steel or wood backing plate. A continuous 1x3 wood cleat anchored into the backing secures the cabinet back using two number 10 flathead sheet metal screws at 1 foot 4 inches on center. The top of the upper cabinet connects through the horizontal top member using number 12 flathead wood screws with countersunk finishing grommets at 1 foot 0 inches on center maximum, equally spaced. The cabinet is scribed to the wall at the top where the joint is potentially visible.
Top of upper cabinet NO 12 Flathead WD screw with countersunk finishing grommets at 1'-0" OC MAX, equally spaced (2) NO 10 Flathead sheet metal screw at 1'-4" OC Cabinet back Metal stud and GWB partition, see partition types Scribe to wall where top is potentially visible CONT Backing plate CONT 1 x 3 Wood cleat
