Architectural · A-WTCM8

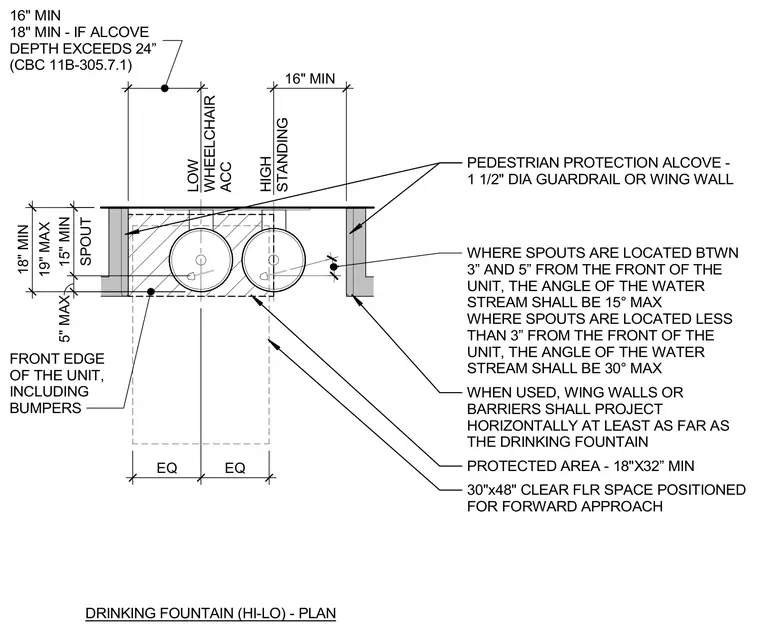

Accessible Hi-Lo Drinking Fountain Plan

Materials

Elements

About this detail

Layout requirements for a Hi-Lo accessible drinking fountain within a pedestrian protection alcove accommodate both a low wheelchair-accessible unit and a high standing unit with equal spacing. A thirty by forty-eight inch clear floor space is positioned for a forward approach, flanked by one-and-a-half-inch diameter guardrails or wing walls. Spout locations and water stream angles are governed by strict distance parameters from the front edge of the unit, including bumpers. Alcove depth requirements and protected area dimensions comply with accessibility standards.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
