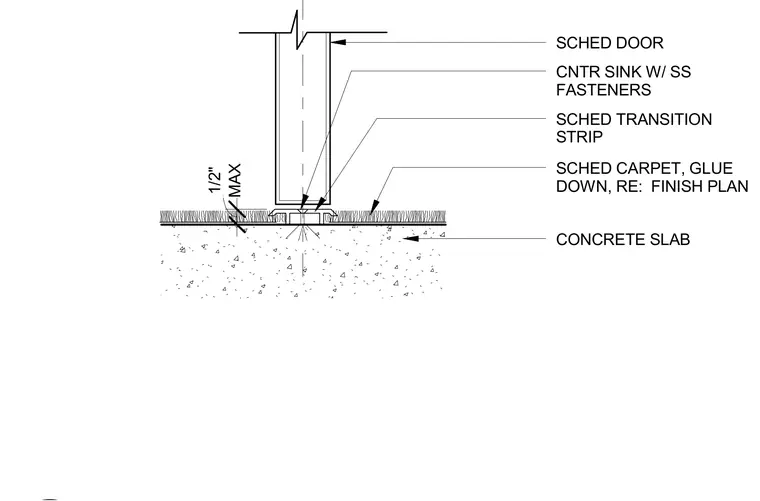

A scheduled transition strip is anchored to a concrete slab with countersunk stainless steel fasteners beneath a scheduled door. Scheduled glue-down carpet abuts both sides of the transition strip with a maximum one-half inch clearance. The assembly accommodates floor finishes while maintaining a flush transition at the door threshold.
SCHED TRANSITION STRIP SCHED CARPET, GLUE DOWN, RE: FINISH PLAN SCHED DOOR CONCRETE SLAB MAX 1/2" CNTR SINK W/ SS FASTENERS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
