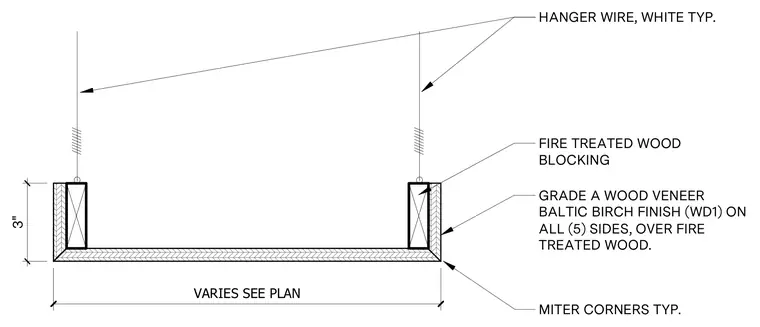

Suspended wood slat ceiling assembly supported by typical white hanger wires attached to fire-treated wood blocking. The blocking is wrapped in grade A wood veneer baltic birch finish designated as WD1 on all five sides over fire-treated wood. The corners feature typical mitered joints. The overall width varies as specified per plan with a typical depth of 3 inches.
HANGER WIRE, WHITE TYP. MITER CORNERS TYP. FIRE TREATED WOOD BLOCKING GRADE A WOOD VENEER BALTIC BIRCH FINISH (WD1) ON ALL (5) SIDES, OVER FIRE TREATED WOOD. 3" VARIES SEE PLAN
