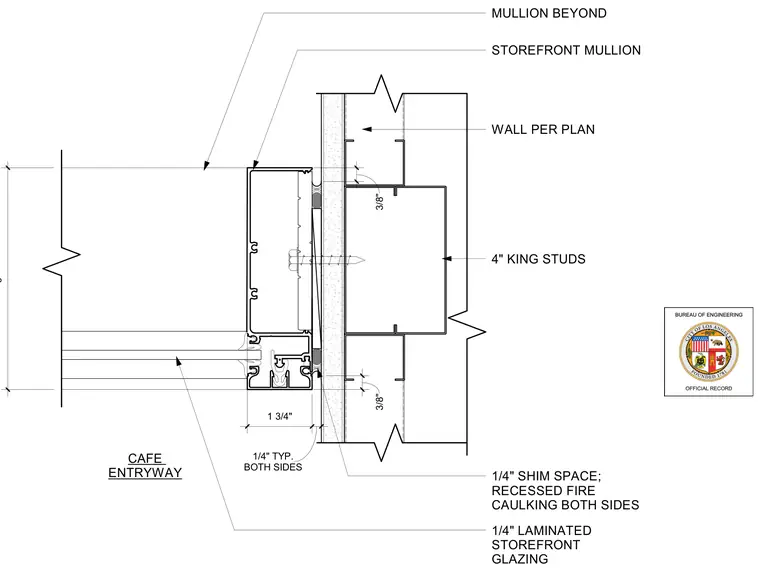

A storefront mullion attaches to four-inch king studs with a one-quarter-inch shim space. Recessed fire caulking is applied to both sides of the jamb assembly. One-quarter-inch laminated storefront glazing is secured within the aluminum framing member. A one-and-three-quarter-inch mullion extends beyond the primary connection point.
1/4" LAMINATED STOREFRONT GLAZING STOREFRONT MULLION WALL PER PLAN 4" KING STUDS CAFE ENTRYWAY 1/4" SHIM SPACE; RECESSED FIRE CAULKING BOTH SIDES 6" BOTH SIDES 1/4" TYP. 1 3/4" MULLION BEYOND 3/8" 3/8" BUREAU OF ENGINEERING OFFICIAL RECORD
