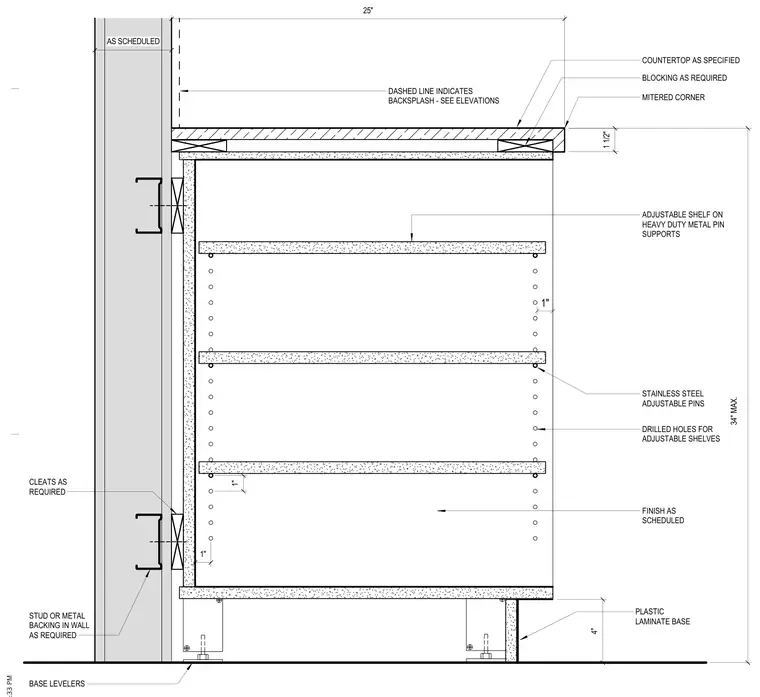

A plastic laminate base is supported by adjustable base levelers and anchored to a wall with metal studs or wood backing as required. The cabinet features a mitered corner countertop set on wood blocking, with a dashed line indicating the backsplash location. Adjustable shelves rest on heavy-duty stainless steel metal pin supports inserted into pre-drilled holes spaced one inch apart. Cleats secure the cabinet back to the wall framing, and the exterior surfaces are finished as scheduled.
1 1/2" 4" 34" MAX. 25" AS SCHEDULED COUNTERTOP AS SPECIFIED BLOCKING AS REQUIRED FINISH AS SCHEDULED CLEATS AS REQUIRED STUD OR METAL BACKING IN WALL AS REQUIRED BASE LEVELERS DASHED LINE INDICATES BACKSPLASH - SEE ELEVATIONS 1" 1" STAINLESS STEEL ADJUSTABLE PINS DRILLED HOLES FOR ADJUSTABLE SHELVES PLASTIC LAMINATE BASE MITERED CORNER ADJUSTABLE SHELF ON HEAVY DUTY METAL PIN SUPPORTS 1"
