Architectural · A-WT2GP

Witness Clerk Desk Work Surface

Materials

Connections

About this detail

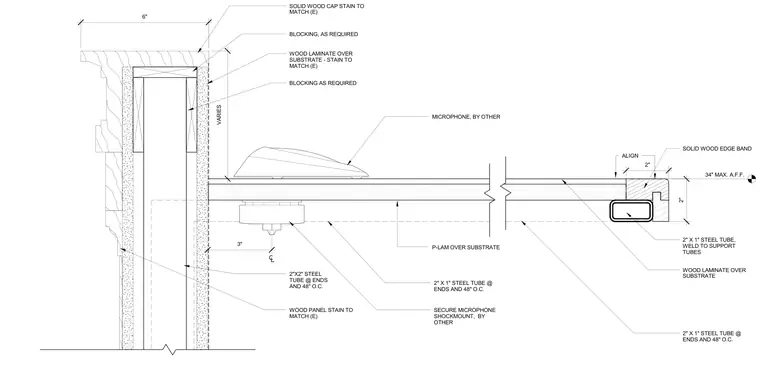

The work surface features a plastic laminate over a substrate finish, supported by two-by-one-inch steel tubes spaced at ends and forty-eight inches on center, welded to support tubes. A solid wood edge band finishes the front edge at a maximum height of thirty-four inches above finished floor. The desk assembly integrates with an existing two-by-two-inch steel tube structure spaced at ends and forty-eight inches on center, finished with wood panels and a solid wood cap stained to match. Additional wood blocking is provided as required, and a microphone shockmount is secured beneath the work surface.
