Structural · A-WSXB5

Trellis Canopy Base Plate at Concrete Pedestal

Materials

Concrete Steel

Elements

Columns Beams Ramps Railings / Guards Canopies Floors / Slabs Connections / Plates

Connections

Base Plate / Anchorage HSS Connection

About this detail

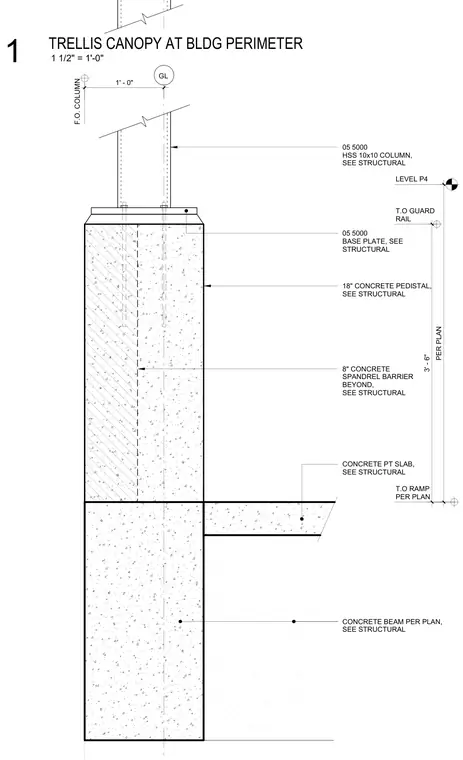

A hollow structural section 10x10 column rests on a base plate atop an 18-inch concrete pedestal at Level P4. The pedestal intersects a post-tensioned concrete slab, a concrete beam, and an adjacent concrete spandrel barrier. A guard rail and ramp alignment are referenced to the top of the ramp and guard rail elevations per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
