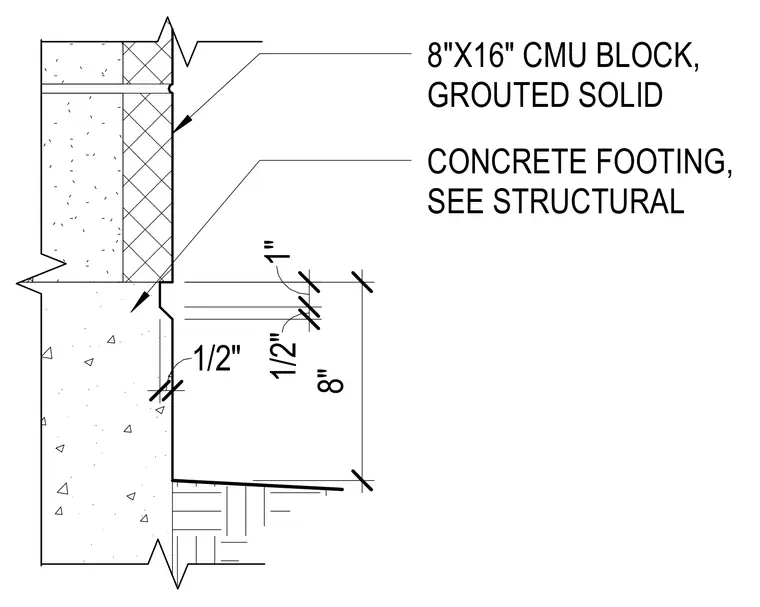

An eight-inch by sixteen-inch concrete masonry unit block wall is grouted solid and supported by a concrete footing. Dimensional callouts indicate a one-inch offset and half-inch reveals along the foundation junction. The concrete footing is referenced to structural drawings for sizing and reinforcement.
