A vertical gypsum wall board assembly terminates against a bottom wood slat featuring a one-half inch overhang. The horizontal ceiling plane consists of gypsum wall board finished with paint IP-3. A one-half inch dimension marks the overhang offset between the ceiling finish and the outer wood slat edge.

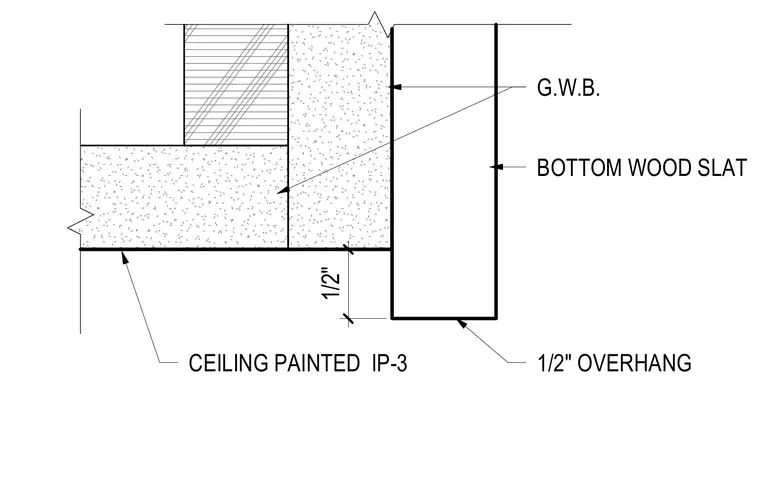

1/2" 1/2" OVERHANG BOTTOM WOOD SLAT G.W.B. CEILING PAINTED IP-3
