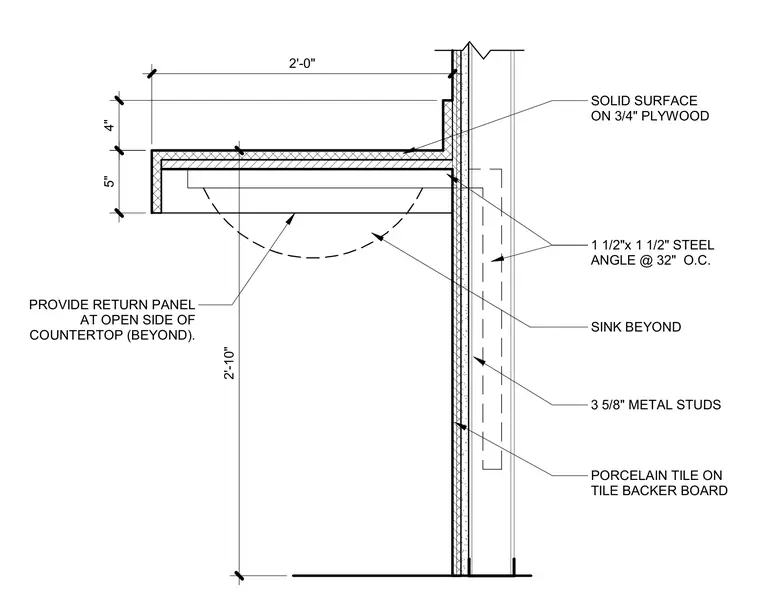

A solid surface countertop on three-quarter-inch plywood is mounted to a partition wall framed with three-and-five-eighths-inch metal studs. Support is provided by one-and-a-half-inch by one-and-a-half-inch steel angles spaced at thirty-two inches on center. The wall surface features porcelain tile over tile backer board. A return panel is provided at the open side of the countertop.
SOLID SURFACE ON 3/4" PLYWOOD 3 5/8" METAL STUDS 1 1/2"x 1 1/2" STEEL ANGLE @ 32" O.C. 2'-10" 5" SINK BEYOND PORCELAIN TILE ON TILE BACKER BOARD 2'-0" 4" PROVIDE RETURN PANEL AT OPEN SIDE OF COUNTERTOP (BEYOND).
