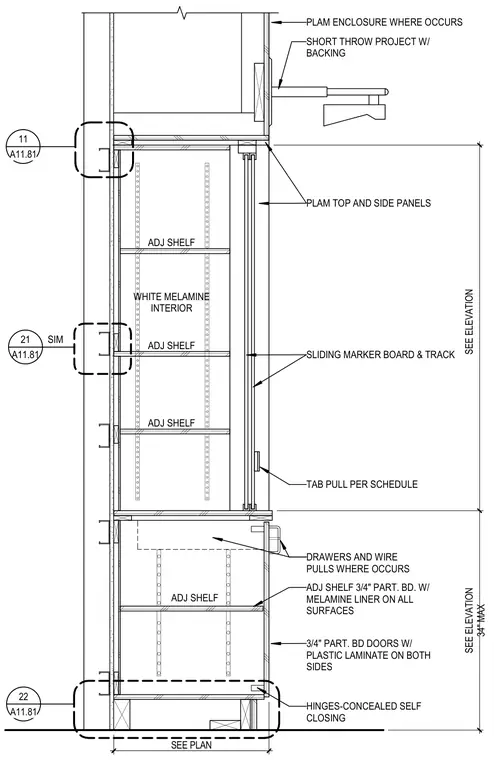

A full-height built-in storage cabinet assembly includes plastic laminate top and side panels. The cabinet features adjustable shelves constructed from three-quarter-inch particle board with a white melamine liner on all surfaces. Lower cabinet doors utilize three-quarter-inch particle board with plastic laminate on both sides, hung on concealed self-closing hinges with tab pulls per schedule. A sliding marker board and track assembly is integrated into the front elevation alongside a short-throw projector mounted with backing. Drawers with wire pulls are included where required by plan, and the entire assembly is anchored to metal stud framing.
DRAWERS AND WIRE PULLS WHERE OCCURS PLAM TOP AND SIDE PANELS ADJ SHELF 3/4" PART. BD. W/ MELAMINE LINER ON ALL SURFACES TAB PULL PER SCHEDULE A11.81 22 3/4" PART. BD DOORS W/ PLASTIC LAMINATE ON BOTH SIDES HINGES-CONCEALED SELF CLOSING A11.81 21 SIM A11.81 11 PLAM ENCLOSURE WHERE OCCURS SLIDING MARKER BOARD & TRACK SEE PLAN SEE ELEVATION 34" MAX SEE ELEVATION ADJ SHELF ADJ SHELF WHITE MELAMINE INTERIOR ADJ SHELF ADJ SHELF SHORT THROW PROJECT W/ BACKING
