Unisex sanitary facilities are identified by a geometric symbol featuring a triangle superimposed on a circle within a twelve inch diameter. The triangle symbol contrasts with the circle symbol, and the circle symbol contrasts with the door surface.

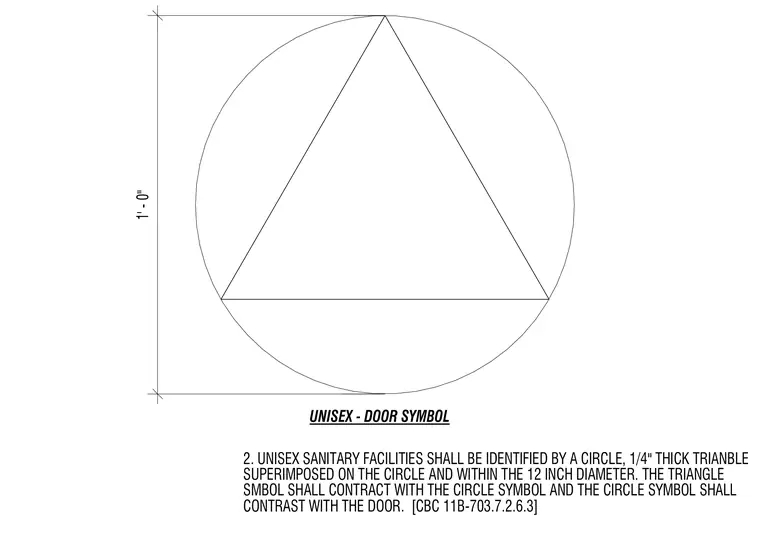

UNISEX - DOOR SYMBOL 2. UNISEX SANITARY FACILITIES SHALL BE IDENTIFIED BY A CIRCLE, 1/4" THICK TRIANBLE SUPERIMPOSED ON THE CIRCLE AND WITHIN THE 12 INCH DIAMETER. THE TRIANGLE SMBOL SHALL CONTRACT WITH THE CIRCLE SYMBOL AND THE CIRCLE SYMBOL SHALL CONTRAST WITH THE DOOR. [CBC 11B-703.7.2.6.3] 1' - 0"
