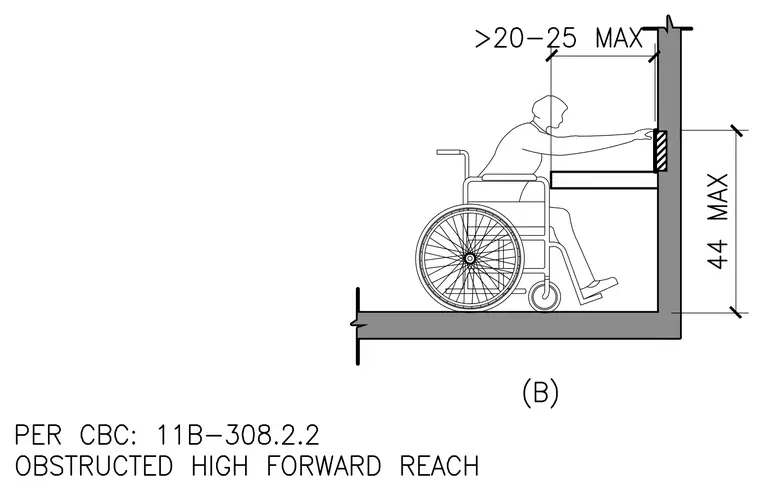

An accessibility detail illustrating the obstructed high forward reach requirements per California Building Code section 11B-308.2.2. A wheelchair user is depicted reaching forward over a shelf or counter obstruction toward a wall-mounted control or element. Dimension lines indicate a maximum reach height of forty-four inches from the finished floor and a maximum reach depth greater than twenty to twenty-five inches maximum over the obstruction.
