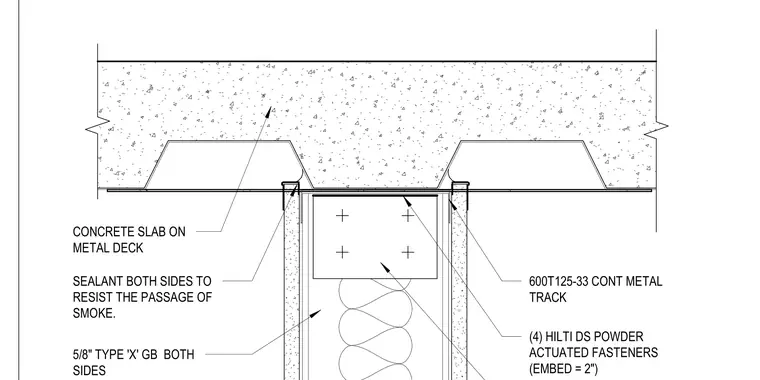

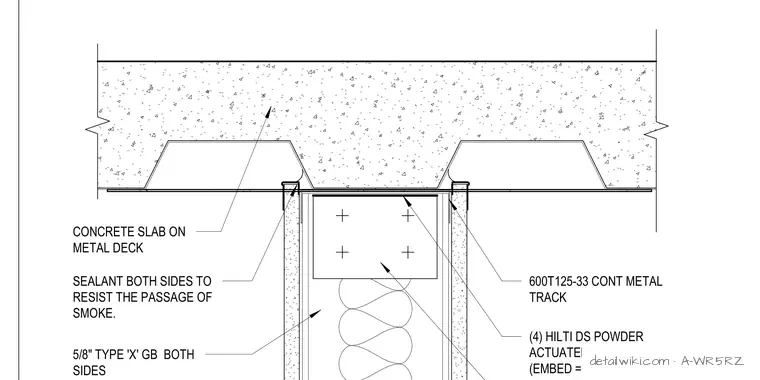

This interior partition detail terminates a cold-formed steel stud wall at the underside of a concrete slab on metal deck. The metal stud framing uses a continuous 600T125-33 metal track secured to the concrete deck above with four Hilti DS powder-actuated fasteners having a two-inch embedment. The wall surfaces are finished with five-eighths-inch Type X gypsum board on both sides. A bead of sealant is applied on both sides of the top track junction to resist the passage of smoke.
CONCRETE SLAB ON METAL DECK 5/8" TYPE 'X' GB BOTH SIDES SEALANT BOTH SIDES TO RESIST THE PASSAGE OF SMOKE. 600T125-33 CONT METAL TRACK (4) HILTI DS POWDER ACTUATED FASTENERS (EMBED = 2")
